Description

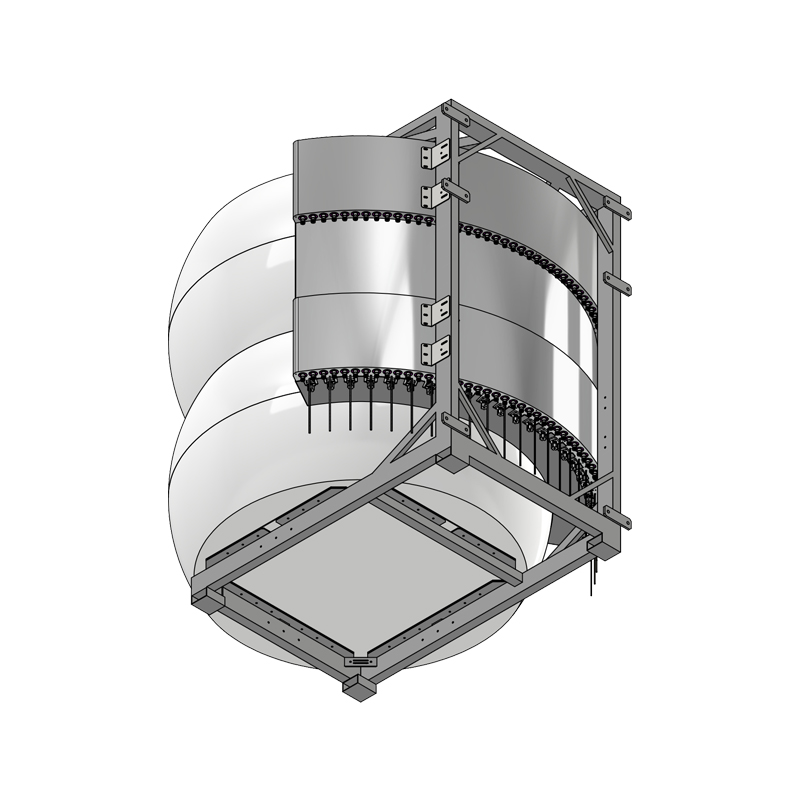

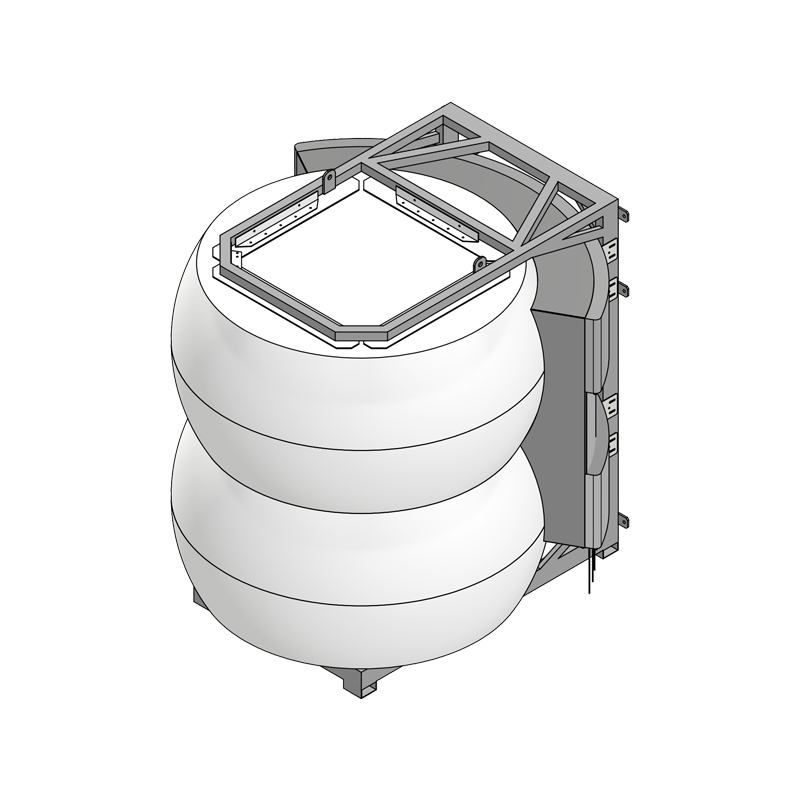

Multi-Beam C-Band Spherical Lens Antenna: 1 row of 24 dual-polarized beams, with independent 0° – 15° tilt per beam. Each beam has 4 ports to provide 4×4 MIMO.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3.7 – 4.2 GHz |
| Gain | 30dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB) | 5° |
| Horizontal Beamwidth (3dB) | 3° |
| Vertical Beamwidth (10dB) | 9° |
| Vertical Beamwidth (3dB) | 5° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 24 |
| Number of Ports total | 96 |
| Adjustable Tilt per Beam | 0° to 15° |
| First Sidelobe Level | <-16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 50W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 96 X 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Spherical Lens diameter: 180cm | 70inch Antenna dimensions: |
| Antenna Weight | 350 kg | 772 lbs |
| Radome Material | Fiber Glass |
| Mounting | Standard pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind Load @ 150km/h | TBD |
Pattern Results: (3.9GHz) |
|
| Horizontal Pattern
|
Vertical Pattern 0° tilt
|
