Datasheet
4 Beams : F Band (3.3 – 4.2 GHz)
4 Beams : H Band (1695 – 2690 MHz)
2 Beams : L Band (698 – 960 MHz)
F Band: 4X4 MIMO
H Band: 2X2 MIMO
L Band: 2X2 MIMO
Production: Ready
Request quote
Lens Technology Enabled™ Multi-Beam Tri-Band Base-Station Antenna utilizes a patented spherical lens design with
• 4 isolated F Band (3.3GHz – 4.2GHz) cross-polarized beams
• 4 isolated High Band (1695MHz – 2690MHz) cross-polarized beams
• 2 isolated Low Band (698MHz – 960MHz) beams
• F Band has 4 ports to support 4×4 MIMO
• High and Low Bands have 2 ports each to support 2×2 MIMO
• 0°-20° RET for F Band & High Band Beams
• 0°-40° RET for Low Band Beams
| Product Category | Antenna |
|---|---|
| Band Count | Tri Band |
| Band Type | F & H & L Band |
| Product Family | MBA |
| RET Available | Yes |
| Manual Tilt Adjust | Yes |
| H x W x D (cm) | 163.5 X 61.7 X 72.1 |
| H x W x D (inch) | 64.4 X 24.3 X 28.4 |
| Weight (kg) | 51.0 |
| Weight (lbs) | 112.4 |
| Application | Macros |
| RET Controller | M-RET |
| ILF | No |
| SBT | No |
| MIMO Capability F-Band | 4X4 |
| MIMO Capability H-Band | 2X2 |
| MIMO Capability L-Band | 2X2 |
| Product Milestone | ML7 |
| MIMO Capability | 4X4 |
| Frequency | 1695-2690, 3300-4200, 698-960 |
| Beams | 4-4-2 |
Mechanical Drawings (Millimeters)
Connector Layout Visio Stencils
RRH Configuration PDF
RRH Configuration Visio
Troubleshooting Guide

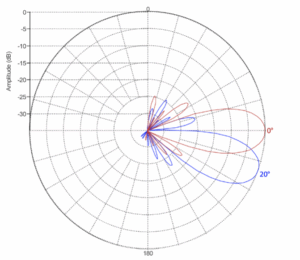

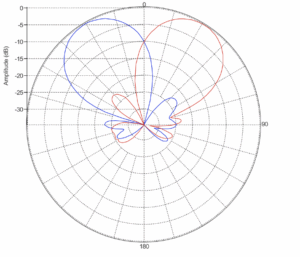

Pattern Files (Asset)
Pattern Files (3D iBWave)
Pattern Files (2D iBWave Combined)
MS-MBA Series Antenna Unpacking Instructions
MS-MBA Series Antenna Unpacking Label
| Crate Dimensions (L x W x H) | 190 x 90 x 98 (cm) 75 x 35.4 x 38.5 (inches) |
| M3 | 1.676 |
| Gross Weight | 125 KGS |
F Band: 4X4 MIMO Configuration
H Band: 2X2 MIMO Configuration
L Band: 2X2 MIMO Configuration
MS-MBA-4.2-H2-T2
