Datasheet
4 Beams : H Band (1695 – 2690 MHz)
4×4 MIMO
Production: Ready
Request quote

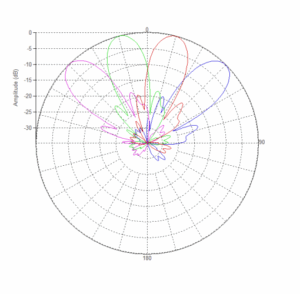

Multi-Beam High Band Spherical Lens Antenna capable of four independent high-frequency (1695-2690MHz) cross-polarized beams to support 4X4 MIMO. Each beam has independent tilt adjust from 0° to 20°.
MS-MBA-4-H4 has standard RET capability.
| Product Category | Antenna |
|---|---|
| Band Count | Single Band |
| Band Type | H Band |
| Product Family | MBA |
| Production Status | Ready |
| RET Available | Yes |

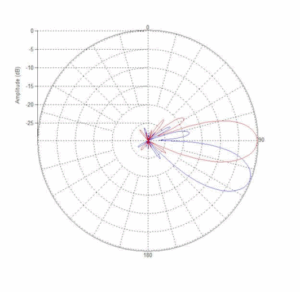

| Tilt Range | 0 to 20 Degrees |
| Manual Tilt Adjust | Yes |
| H x W x D (cm) | 110 x 61 x 66 |
| H x W x D (inch) | 43 x 24 x 26 |
| Weight (kg) | 35 |
| Weight (lbs) | 77 |
| Application | Macros |
| RET Controller | M-RET |
| ILF | No |
| SBT | No |
| MIMO Capability H-Band | 4X4 |
| Product Milestone | ML6 |
| Gen-II | NO |
| MIMO Capability | 4X4 |
| Frequency | 1695-2690 |
| Beams | 4 |
Instruction Manual
Mechanical Drawings (Inches)
Mechanical Drawings (Millimeters)
RRH Configuration
Troubleshooting Guide
Pattern Files (Asset)
Pattern Files (Paf-x)
Pattern Files (3D Vex)
Pattern Files (iBWave)
Pattern Files (iBWave Combined Version)
MS-MBA Series Antenna Unpacking Instructions
MS-MBA Series Antenna Unpacking Label
| Crate Dimensions (L x W x H) | 140 x 98 x 90 (cm) 55 x 38.5 x 35.4 (inches) |
| M3 | 1.235 |
| Gross Weight | 110 KGS |
4×4 MIMO Configuration
MS-12C45
