Datasheet (BASTA)
3 Beams : H Band (1695 – 2690 MHz)
2×2 MIMO
Production: Ready
Request quote

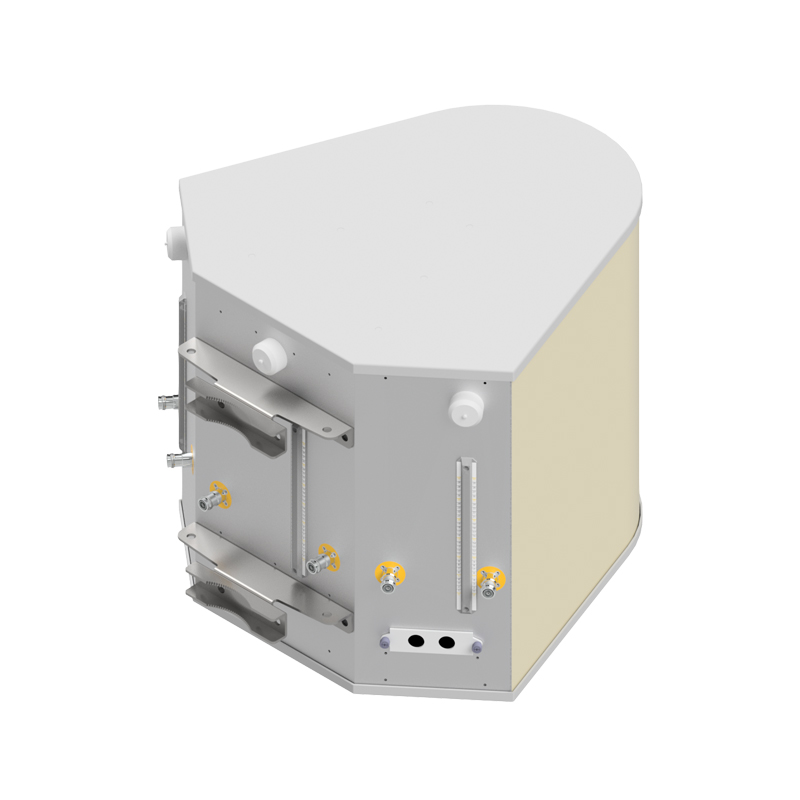

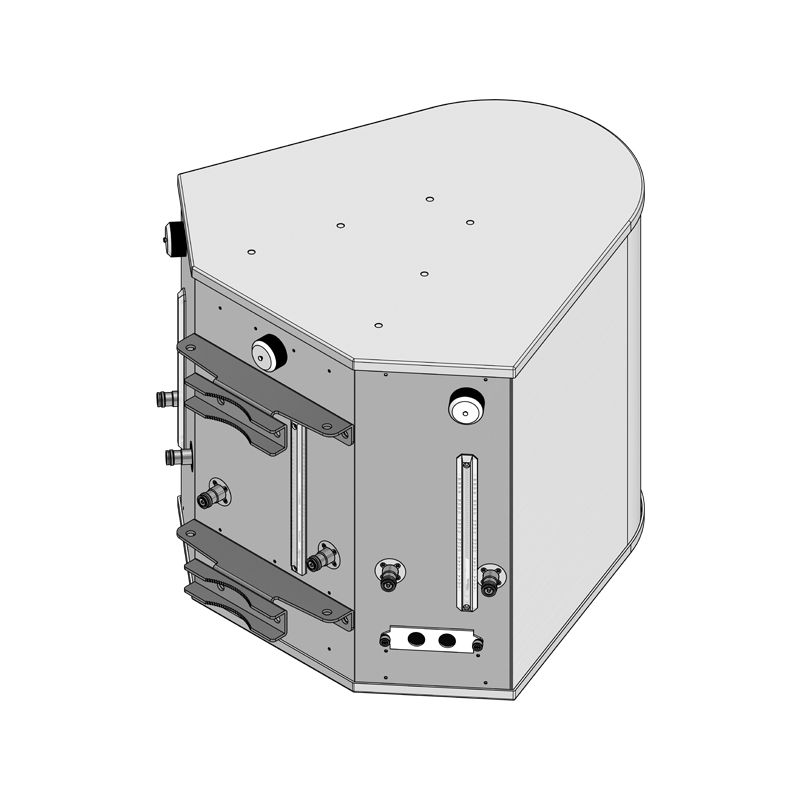

Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for 3 to 9 sector LTE cell site deployments, utilizes a patented spherical lens design with 3 isolated high-frequency (1695 – 2690 MHz) cross-polarized beams. Each beam has 2 cross-polarized ports for supporting 2×2 MIMO. Tilt is adjustable from 0 – 30° for each beam. High tilt provides null at the horizon.
| Product Category | Antenna |
|---|---|
| Application | Macros |
| Band Count | Single Band |
| Band Type | H Band |
| Product Family | MBA |
| RET Available | Yes |
| Tilt Range | 0 to 30 Degrees |
| Manual Tilt Adjust | Yes |
| H x W x D (cm) | 52.5 x 60.7 x 67.8 |
| H x W x D (inch) | 20.7 x 23.9 x 26.7 |
| Weight (kg) | 21.28 |
| Weight (lbs) | 46.9 |
| RET Controller | M-RET |
| ILF | No |
| SBT | No |
| MIMO Capability H-Band | 2X2 |
| Product Milestone | ML7 |
| MIMO Capability | 2X2 |
| Frequency | 1695-2690 |
| Beams | 3 |
Pattern Files (3D Vex)
Pattern Files (iBWave Combined Version)
MS-MBA Series Antenna Unpacking Instructions
MS-MBA Series Antenna Unpacking Label
| Crate Dimensions (L x W x H) | 85 x 80 x 73 (cm) 33.4 31.4 x 28.7 (inches) |
| M3 | 0.496 |
| Gross Weight | 60 KGS |
2X2 MIMO Configuration
MS-MBA-3-H4
