Datasheet
3 Beams : F Band (3300 – 4200 MHz)
3 Beams : H Band (1695 – 2690 MHz)
F Band: 4×4 MIMO
H Band: 4×4 MIMO
Production: Ready
Request quote

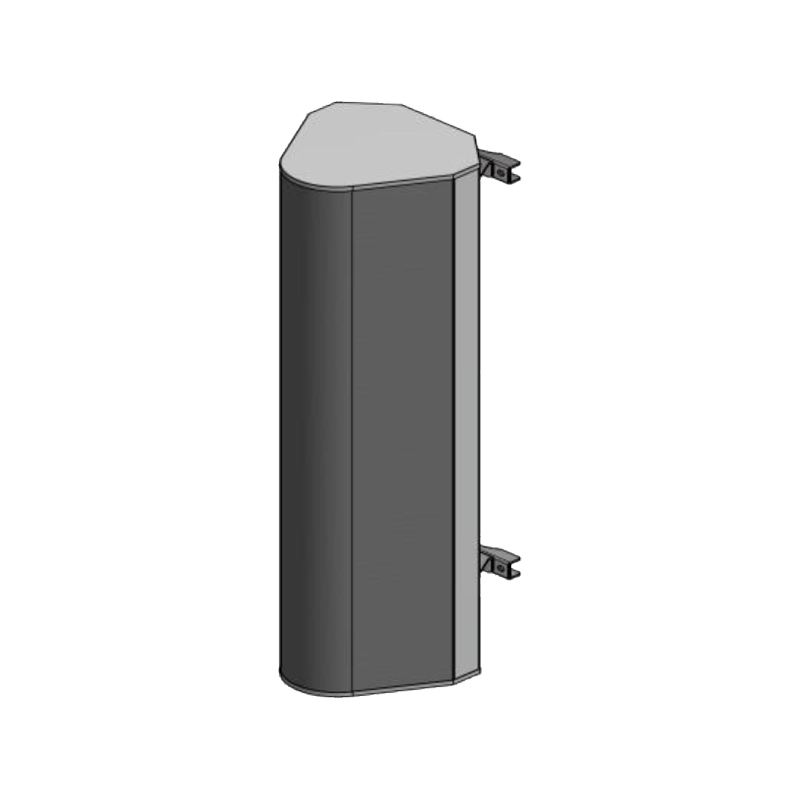

Lens Technology Enabled ™ Multi -Beam Base -Station Antenna perfect for LTE cell site deployments , utilizes a patented spherical lens design with 3 isolated F-Band (3300 – 4200 MHz ) cross-polarized beams and 3 isolated H-Band (1695 -2690 MHz ) cross-polarized beams. Each beam has 4 ports or 4×4 MIMO.
RET is available for each F-Band & H-Band beam from 0° to 15°.
| Band Count | Dual Band |
|---|---|
| Band Type | F Band, H Band |
| Product Family | MBA |
| Application | Macros |
| Production Status | Not Ready |
| RET Available | Yes |
| H x W x D (cm) | 207 x 61 x 60 |
| H x W x D (inch) | 81.5 x 24 x 23.5 |
| Weight (kg) | 60 |
| Weight (lbs) | 132 |
| Manual Tilt Adjust | No |
| RET Controller | M-RET |
| ILF | No |
| SBT | No |
| MIMO Capability C-Band | 4X4 |
| MIMO Capability H-Band | 4X4 |
| Product Milestone | ML4 |
| Product Category | Antenna |
| Gen-II | YES |
| MIMO Capability | 4X4 |
| Beams | 3-3 |
| Frequency | 1695-2690, 3300-4200 |
Instruction Manual
Mechanical Drawings (Inches)
Mechanical Drawings (Millimeters)
Connector Layout
RRH Configuration
Visio Stencils
Troubleshooting Guide
Wind Loading
Pattern Files (Planet)
Pattern Files (Asset)
Pattern Files (Paf-x)
Pattern Files (3D Vex)
Pattern Files (iBWave)
Pattern Files (iBWave Combined Version)
MS-MBA Series Antenna Unpacking Instructions
MS-MBA Series Antenna Unpacking Label
Crate Dimensions
| L x W x H (cm) | 1 x 1 x 1 |
| L x W x H (inches) | 1 x 1 x 1 |
