Datasheet
4 Beams : H Band (1695 – 2690 MHz)
2 Beams : T Band (617 – 896 MHz)
H Band: 2×2 MIMO
T Band: 2×2 MIMO
Production: Ready
Request quote

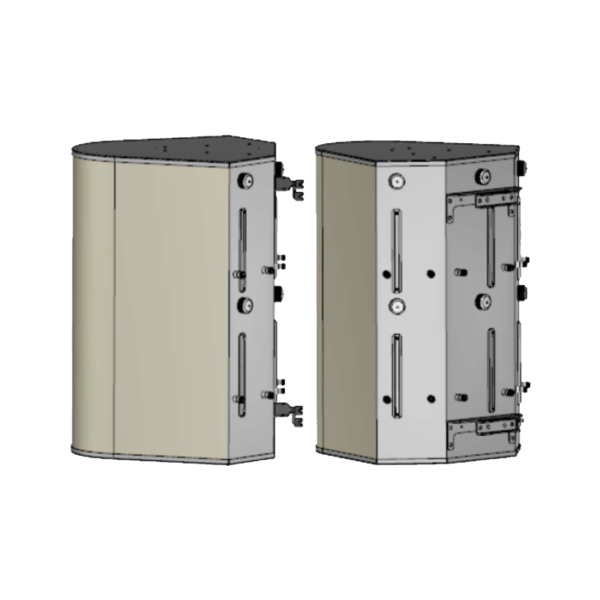

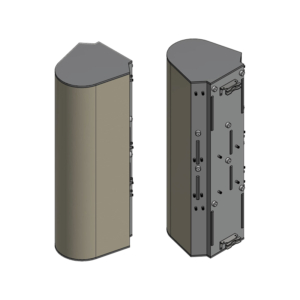

Multi-Beam Dual Band Spherical Lens Antenna: 4 independent high-frequency (1695-2690MHz) cross-polarized beams and 2 independent low-frequency (617-896MHz) cross-polarized beams with 2X2 MIMO support. Each beam has independent tilt adjust, for high frequency 0°-20° and for low frequency 0°-40°.
Improved Design Offers;
1. Superior Pattern Performance
2. Individual RET capability per Beam
| Band Count | Dual Band |
|---|---|
| Band Type | H & T Band |
| Product Family | MBA |
| Production Status | Ready |
| RET Available | Yes |
| Manual Tilt Adjust | Yes |
| H x W x D (cm) | 109 x 61.7 x 72 |
| H x W x D (inch) | 43 x 24.3 x 28.4 |
| Weight (kg) | 37.9 |
| Weight (lbs) | 83.5 |
| Application | Macros |
| RET Controller | M-RET |
| ILF | No |
| SBT | No |
| MIMO Capability H-Band | 2X2 |
| Product Milestone | ML7 |
| MIMO Capability T-Band | 2X2 |
| Product Category | Antenna |
| MIMO Capability | 2X2 |
| Frequency | 1695-2690, 617-896 |
| Beams | 2, 4 |
Pattern Files (Asset)
Pattern Files (3D Vex)
Pattern Files (iBWave)
Pattern Files (iBWave Combined Version)
MS-MBA Series Antenna Unpacking Instructions
MS-MBA Series Antenna Unpacking Label
| Crate Dimensions (L x W x H) | 92 x 80 x 130 (cm) 36.2 x 31.4 x 51 (inches) |
| M3 | 0.957 |
| Gross Weight | 82 KGS |
H Band: 2X2 MIMO Configuration
T Band: 2X2 MIMO Configuration
MS-20.10DBA180
