Datasheet

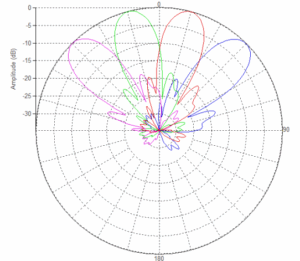

4 Beams : H Band (1695 – 2690 MHz)

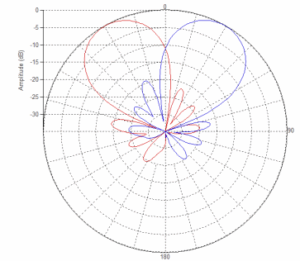

2 Beams : L Band (698 – 960 MHz)
H Band : 4×4 MIMO
L Band : 4×4 MIMO
Multi-Beam Dual Band Cylindrical Lens Antenna:

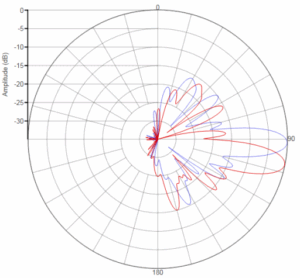

4 independent high-frequency (1695-2690 MHz) dual-polarized beams and 2 independent low-frequency (698 -960 MHz) dual-polarized beams with 4×4 MIMO support. Each beam has independent RET, for high frequency 2°- 12° and for low frequency 2°-17°.
| Band Count | Dual Band |
|---|---|
| Band Type | H & L Band |
| Product Category | Antenna |
| Product Family | MBA |
| RET Available | Yes |
| Manual Tilt Adjust | Yes |
| H x W x D (cm) | 232 x 61.7 x 72.3 |
| H x W x D (inch) | 91 x 24.3 x 28.5 |
| Weight (kg) | 80 |
| Weight (lbs) | 176 |
| Application | Macros |
| RET Controller | M-RET |
| ILF | No |
| SBT | No |
| MIMO Capability H-Band | 4X4 |
| MIMO Capability L-Band | 4X4 |
| Frequency | 1695-2690, 698-960 |
| Beams | 2, 4 |
Instruction Manual
Mechanical Drawings (Inches)
Mechanical Drawings (Millimeters)
Connector Layout Visio Stencils
Troubleshooting Guide
Wind Loading
Pattern Files (Asset)
Pattern Files (Paf-x)
Pattern Files (3D Vex)
Pattern Files (iBWave)
Pattern Files (iBWave Combined Version) (EDT=0 deg)
MS-MBA Series Antenna Unpacking Instructions
MS-MBA Series Antenna Unpacking Label
| Crate Dimensions (L x W x H) | – |
| M3 | – |
| Gross Weight | – |
MS-48.48C90
